| Feature | Value |
| Size | Maxi Maxi |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/-5° |
| Grade of filtration | 40 µm |
| Condensate drain | Manually rotating |

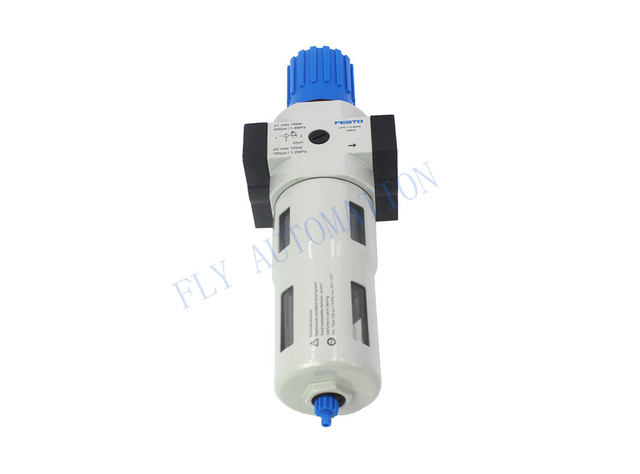

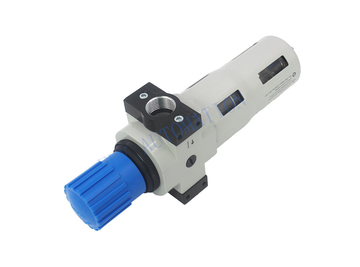

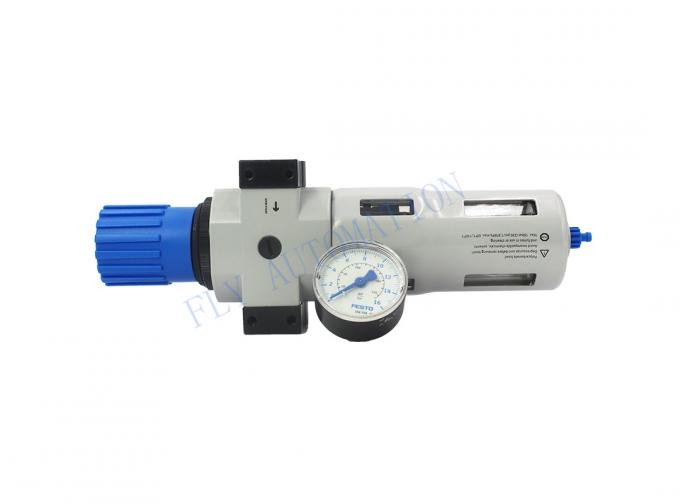

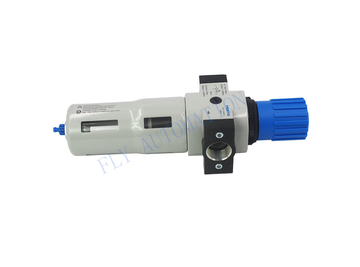

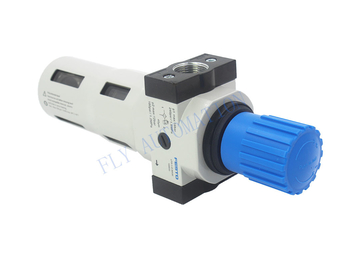

| Design | Filter regulator with pressure gauge |
| Max. condensate volume | 80 ml |
| Bowl guard | Metal bowl guard |
| Symbol | 991589 |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge |
| Operating pressure | 1 bar ... 16 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.4 bar |
| Standard nominal flow rate | 10000 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases |
| Media temperature | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 1470 g |
| Type of mounting | With accessories |
| Pneumatic connection, port 1 | G1 |
| Pneumatic connection, port 2 | G1 |
| Note on materials | RoHS-compliant |
| Material housing | Die-cast zinc |
| Material bowl | PC |
We win with high quality.
Only with perfect quality system management can we have quality assurance. Fly Automation has passed
ISO9001 quality management system certification.
Precision high-end testing equipment 100% inspection. Strive to be "100 points high quality products"
Only with quality can we have market, go further, and strive for the quality management concept of survival with
quality.
Warranty
All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement
without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Months, Buyers can still send it back, We will contact suppliers or Manufactory for
Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Ningbo Fly Automation Co., Ltd with its headquarter located in Ningbo and established in 2010, is a wellknown supplier manufacture of pneumatic equipments in the world market.
Fly Automation is specialized in producing pneumatic cylinders, pneumatic valves,air preparation units, pulse jet valves, pneumatic fittings, etc.
which are widely used in the lighting and textile, automotive, machinery manufacturing, metallurgy, electronics,environmental protection ceramics, medical equipments,food and packaging automatic industrial fields.
