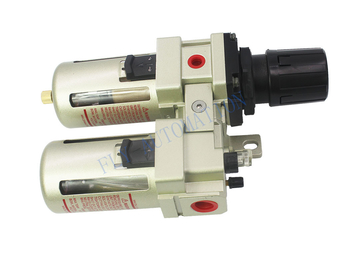

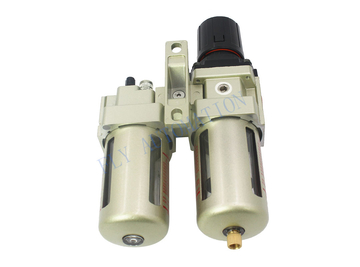

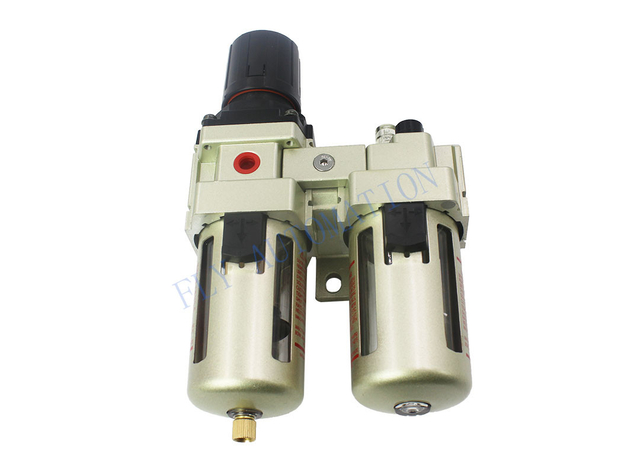

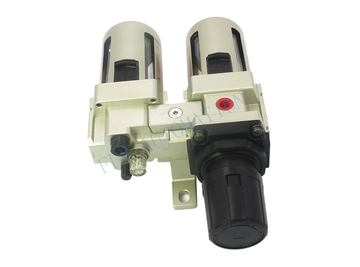

![SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover](/photo/p1343884-640x640-smc-air-preparation-units-ac4010-04-filter-combination-g1-2-metal-cover.jpg "SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover")
![SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover](/photo/p1343884-360x360-smc-air-preparation-units-ac4010-04-filter-combination-g1-2-metal-cover.jpg "SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover")
![SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover](/photo/p1343885-360x360-smc-air-preparation-units-ac4010-04-filter-combination-g1-2-metal-cover.jpg "SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover")
![SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover](/photo/p1343886-360x360-smc-air-preparation-units-ac4010-04-filter-combination-g1-2-metal-cover.jpg "SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover")
![SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover](/photo/p1343887-360x360-smc-air-preparation-units-ac4010-04-filter-combination-g1-2-metal-cover.jpg "SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover")
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
$ 19
$
28
$ 299.5
$
380
$ 31.5
$
40
$ 13.2
$
19
$ 46.3
$
59
$ 26
$
35
$ 9.5
$
18
$ 58
$
68
$ 11.3
$
17.5
$ 20.5
$
28
$ 10
$
18
$ 8.6
$
0.00
$ 34.5
$
50
$ 12.5
$
18
$ 13.6
$
18
$ 17
$
24
| Specifications | |
| Guaranteed pressure resistance | 1.5MPa |
| Max. working pressure | 1.0MPa |
| Working temperature | 5~60℃ |
| Filter precision | 25 μm(5 μm is optional ) |
| Recommended oil | Turbine No1 Oil lsovG32 |
| Bowl material | Polycarbonate |
| Bowl guard | AC1010~2010(None)AC3010~5010(Available) |
| Pressure adjusting range | AC1010:0.05~0.7MPaAC2010~5010:0.05~0.85MPa |
| Valve type | With overflow |

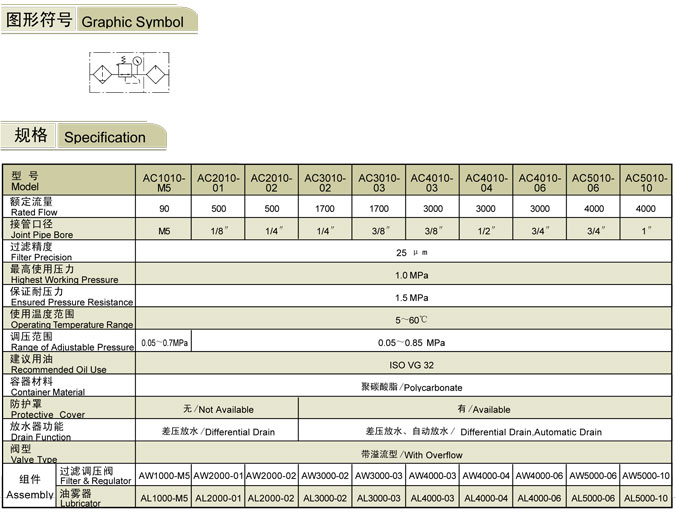

| Model | AC1010 -M5 | AC2010 -01 | AC2010 -02 | AC3010 -02 | AC3010 -03 | AC4010 -03 | AC4010 -04 | AC4010 -06 | AC5010 -06 | AC5010 - 10 |
| Rated Flow | 90 | 500 | 500 | 1700 | 1700 | 3000 | 3000 | 3000 | 4000 | 4000 |
| Joint Pipe Bore | M5 | G1/8" | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" |
| Filter Precision | 25µm | |||||||||
| Highest Working Pressure | 1.0MPa | |||||||||
| Ensured Pressure Resistance | 1.5MPa | |||||||||
| Operating Temperature Range | 5- 60℃ | |||||||||
| Range of Adjustable Pressure | 0.05-0.7MPa | 0.05- 0.85MPa | ||||||||
| Recommended Oil Use | ISO VG 32 | |||||||||
| Container Material | Polycarbonate | |||||||||
| Protective Cover | Not Available | Available | ||||||||
| Drain Function | Differential Drain | Diffefential Drain,Automatic Drain | ||||||||
| Valve Type | With Overflow | |||||||||
| Composing Elements Lubricatof | AW1000-M5 | AW2000-01 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW5000-06 | AW5000-10 |
| AL1000-M5 | AL20000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 | |

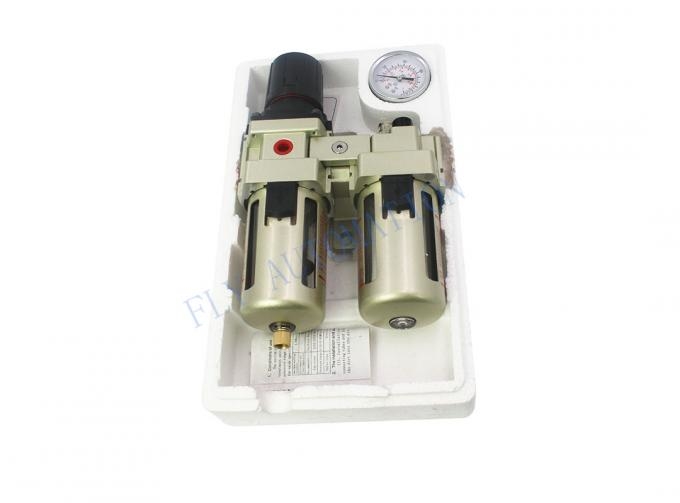

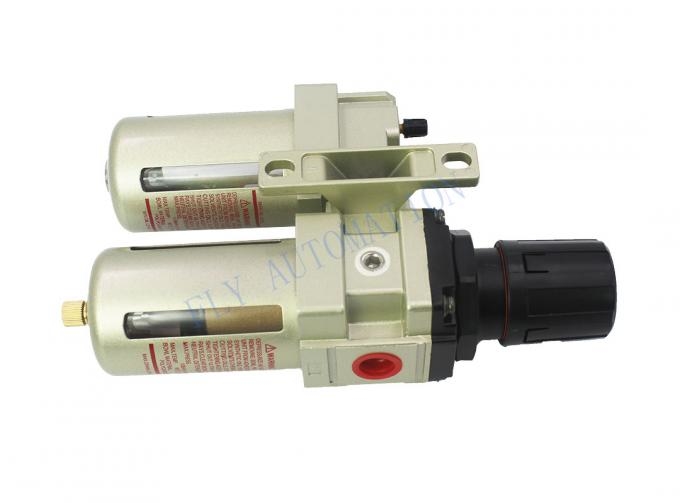

Picture details:
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging, | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment.
|
Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
Ningbo Fly Automation Co., Ltd with its headquarter located in Ningbo and established in 2010, is a wellknown supplier manufacture of pneumatic equipments in the world market.
Fly Automation is specialized in producing pneumatic cylinders, pneumatic valves,air preparation units, pulse jet valves, pneumatic fittings, etc.
which are widely used in the lighting and textile, automotive, machinery manufacturing, metallurgy, electronics,environmental protection ceramics, medical equipments,food and packaging automatic industrial fields.
