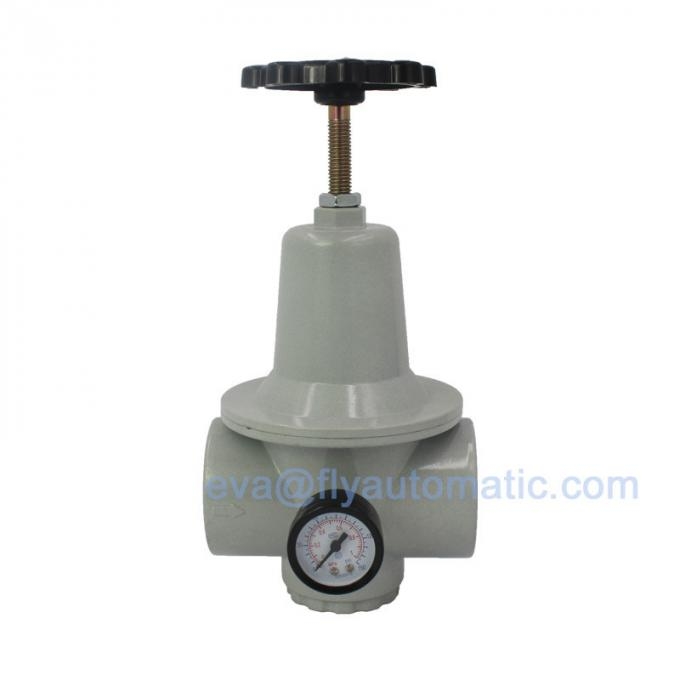

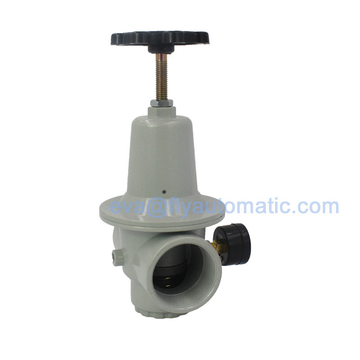

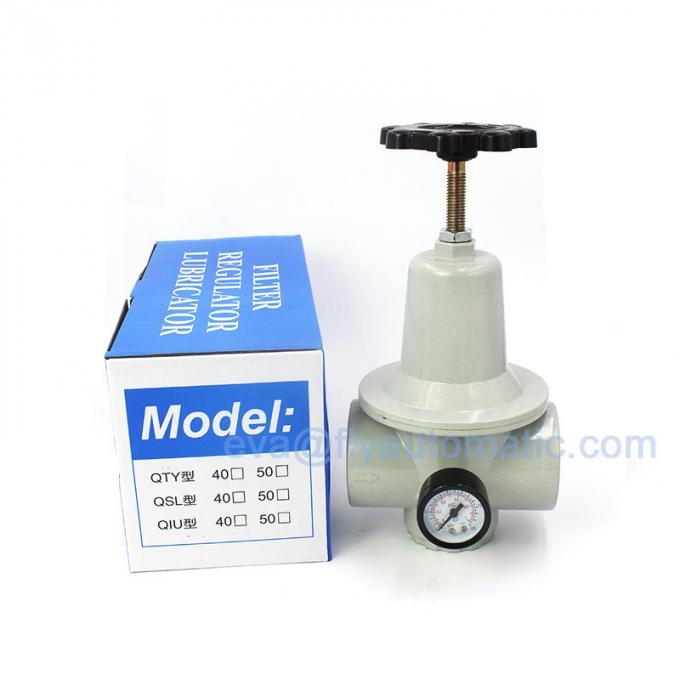

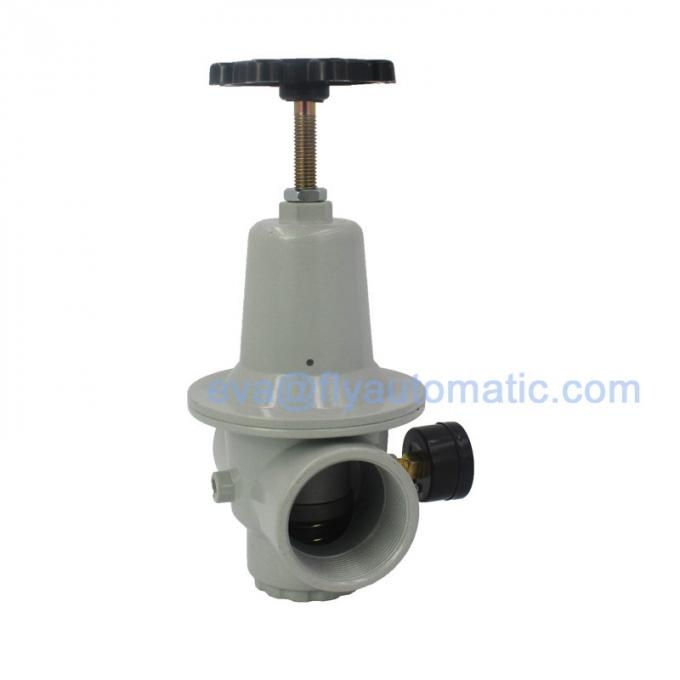

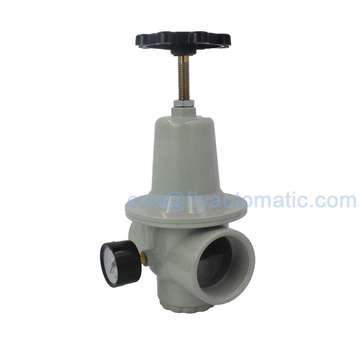

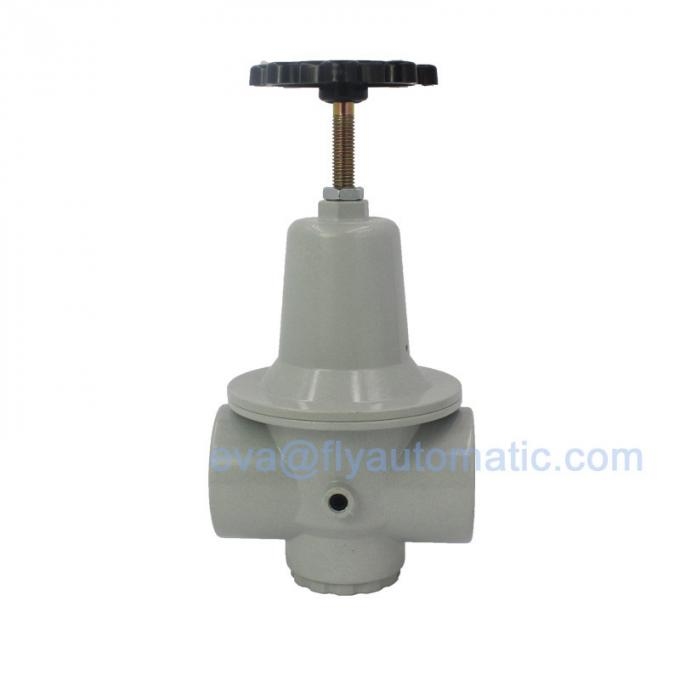

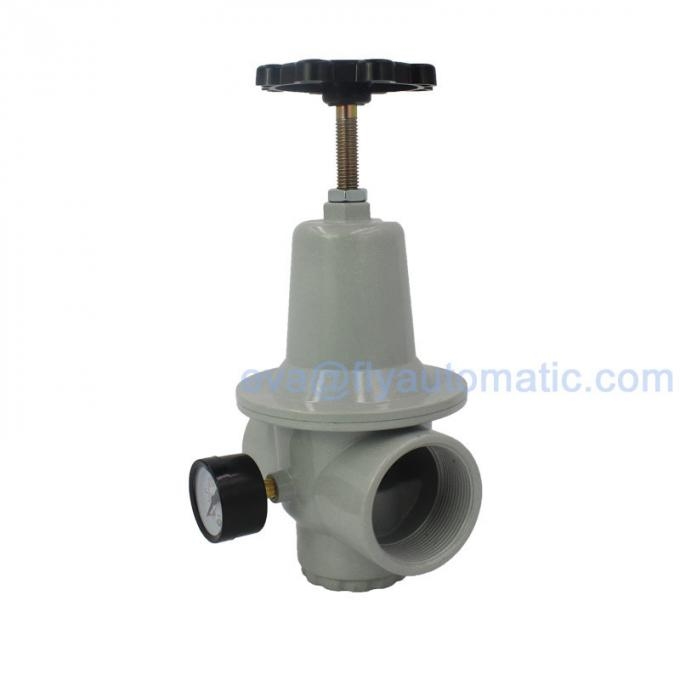

![QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series](/photo/p1344111-640x640-qty-50-pneumatic-air-pressure-regulator-2-bspt-with-gauge-13000-l-min-qty-series.jpg "QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series")
![QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series](/photo/p1344111-360x360-qty-50-pneumatic-air-pressure-regulator-2-bspt-with-gauge-13000-l-min-qty-series.jpg "QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series")
![QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series](/photo/p1344112-360x360-qty-50-pneumatic-air-pressure-regulator-2-bspt-with-gauge-13000-l-min-qty-series.jpg "QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series")
![QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series](/photo/p1344113-360x360-qty-50-pneumatic-air-pressure-regulator-2-bspt-with-gauge-13000-l-min-qty-series.jpg "QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series")
![QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series](/photo/p1344114-360x360-qty-50-pneumatic-air-pressure-regulator-2-bspt-with-gauge-13000-l-min-qty-series.jpg "QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series")
![QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series](/photo/p1344115-360x360-qty-50-pneumatic-air-pressure-regulator-2-bspt-with-gauge-13000-l-min-qty-series.jpg "QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series")
![QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series](/photo/p1344116-360x360-qty-50-pneumatic-air-pressure-regulator-2-bspt-with-gauge-13000-l-min-qty-series.jpg "QTY-50 Pneumatic Air Pressure Regulator 2" BSPT With Gauge 13000 L/Min QTY Series")
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
$ 16.8
$
20
$ 58
$
68
$ 12.5
$
18
$ 17
$
24
$ 299.5
$
380
$ 46.3
$
59
$ 13.2
$
19
$ 19
$
28
$ 7
$
10
$ 20.5
$
28
$ 9.5
$
18
$ 10
$
18
$ 31.5
$
40
$ 8.6
$
0.00
$ 13.6
$
18
$ 11.3
$
17.5

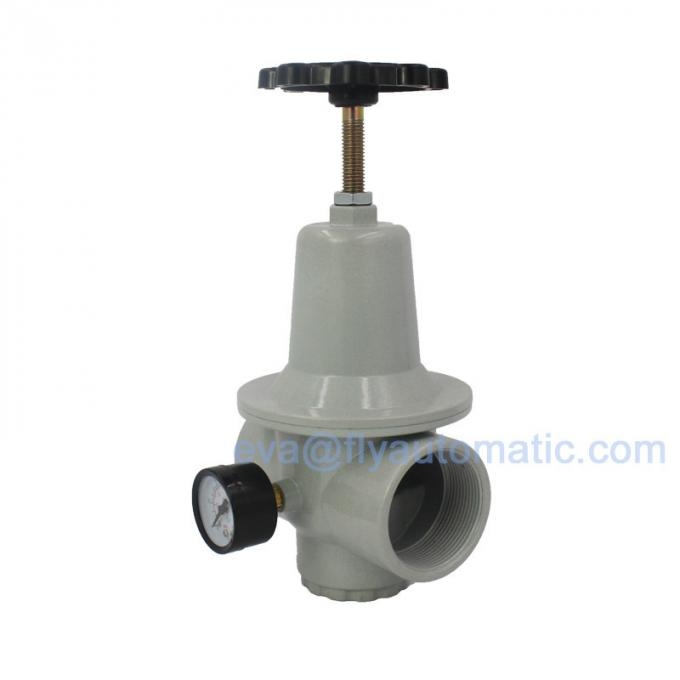

Model: QTY-50
Port Size: 2" BSPT
Max. Rated Flow: 13000 L/min
Pressure Adjustable Range: 0.15~0.9Mpa
Proof Pressure: 15.0 kgf/cm2
Max. adjustable Pressure: 9.5kgf/cm2
Pressure Gauge: Y50-10-1/8
Ambient & Fluid Temperature: 5~60C
Body Material: Aluminum alloy
| Specification | ||||||

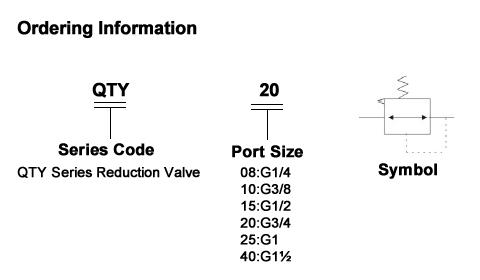

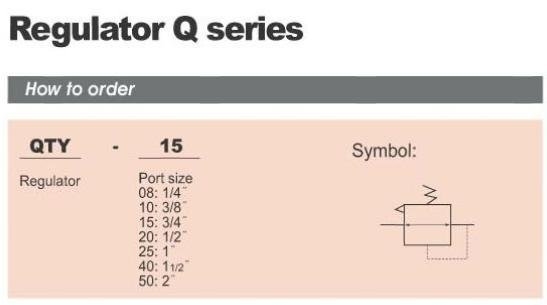

| Model | QTY-08 | QTY-10 | QTY-15 | QTY-20 | QTY-25 | QTY-40 |
| Port size | G1/4" | G3/8" | G1/2" | G3/4" | G1" | G1 1/2" |
| Fluid | Air | |||||
| Adjustable pressure range | 0.5~8kgf/cm2 | |||||
| Max. adjustable pressure | 9.5kgf/cm2 | |||||
| Proof pressure | 15.0kgf/cm2 | |||||
| Ambient&fluid temperature | 5-60C | |||||
| Body material | Aluminum alloy | |||||
| Technical data | ||||||
| Model | QTY-10 | QTY-15 | QTY-20 | QTY-25 | QTY-40 | |
| Environment temperature | 5~60°C | |||||
| Nominal input pressure | 1.0MPa | |||||
| Max.input pressure | 0.63MPa | |||||
| Pressure range | 0.05~0.63MPa | |||||
| Air Flow Sheet | ||||||
| Model | reduced to 0.05MPa, the max flow-rate will not less than the following value. | |||||
| Air flow-rate (L/min) | ||||||
| MPa Entrance pressure | ||||||
| 0.63 | 0.8 | |||||
| QTY-6 | 160 | 190 | ||||
| QTY-8 | 860 | 900 | ||||
| QTY-10 | 1000 | 1100 | ||||
| QTY-15 | 1200 | 1300 | ||||
| QTY-20 | 1980 | 2100 | ||||
| QTY-25 | 2450 | 2650 | ||||
| QTY-40 | 2920 | 3200 | ||||
1. We win with high quality.
Only with perfect quality system management can we have quality assurance. Fly Automation has passed ISO9001 quality management system certification.
Precision high-end testing equipment 100% inspection. Strive to be "100 points high quality products"
Only with quality can we have market, go further, and strive for the quality management concept of survival with quality.
2. Professional production technology management ability.
Pay attention to the process quality control, important performance test and appearance inspection of each work station in the production process. Check the quality level by level.
All staff participate, strengthen management, keep improving and casting quality.
3. Professional technical and after-sales service team
Provide professional technical support and analysis for customers, follow-up before and after orders step by step.
Professional after-sales customer service personnel and online staffing.
Ningbo Fly Automation Co., Ltd with its headquarter located in Ningbo and established in 2010, is a wellknown supplier manufacture of pneumatic equipments in the world market.
Fly Automation is specialized in producing pneumatic cylinders, pneumatic valves,air preparation units, pulse jet valves, pneumatic fittings, etc.
which are widely used in the lighting and textile, automotive, machinery manufacturing, metallurgy, electronics,environmental protection ceramics, medical equipments,food and packaging automatic industrial fields.
