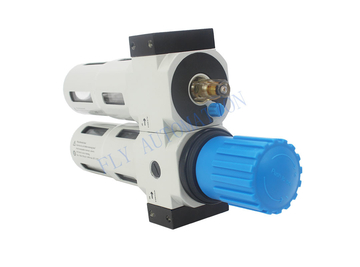

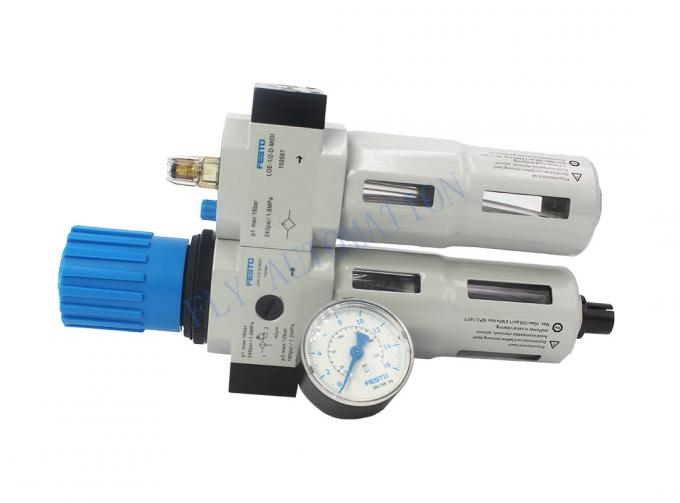

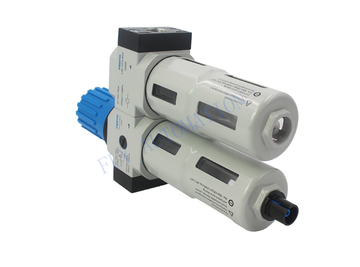

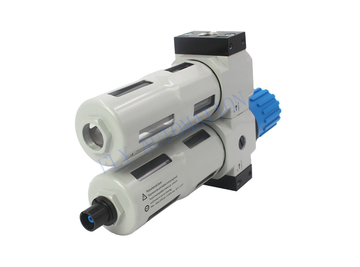

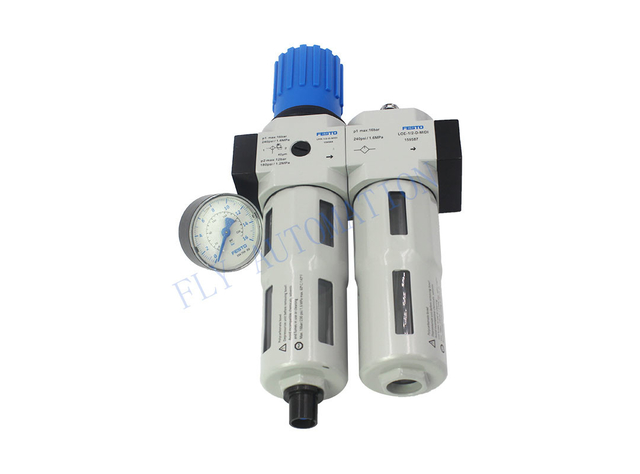

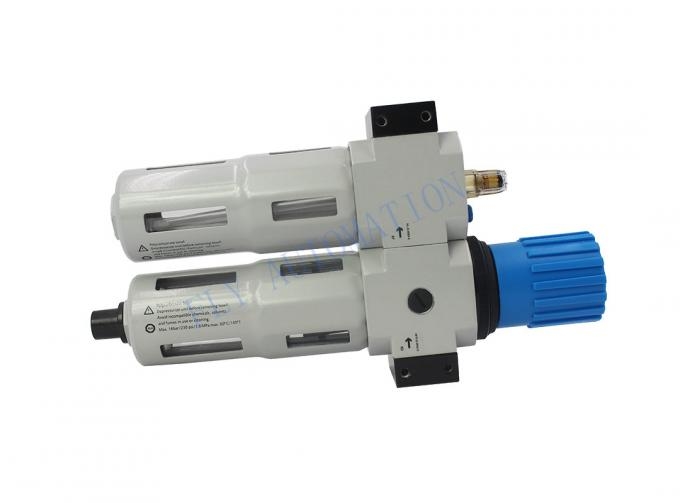

FESTO FRC-1/2-D-5M-MIDI 162774 Air Preparation Unit 5 μm
| Feature | Value |
| Size | Midi |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/-5° |
| Condensate drain | Manually rotating |
| Design | Filter regulator with pressure gauge Proportional standard mist lubricator |
| Max. condensate volume | 43 ml |
| Grade of filtration | 5 µm |
| Bowl guard | Metal bowl guard |
| Symbol | 991549 |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge |
| Operating pressure | 1 bar ... 16 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 1800 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [6:8:-] Inert gases |
| Media temperature | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 1440 g |
| Type of mounting | In-line installation With accessories |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Note on materials | RoHS-compliant |
| Material housing | Die-cast zinc |
| Material bowl | PC |
| Ordering data | ||||||
| Pressure gauge with outer scale in bar and inner scale in psi | ||||||
| Size | Connection | Condensate drain | Condensate drain | |||
| turned manually | fully automatic | |||||
| Part No. | Type | Part No. | Type | |||
| Mini | G1/8 | 185791 FRC-1/8-D-MINI-KA | 185792 FRC-1/8-D-MINI-KA-A | |||
| G¼ | 185793 FRC-1/4-D-MINI-KA | 185794 FRC-1/4-D-MINI-KA-A | ||||
| Midi | G¼ | 185795 FRC-1/4-D-MIDI-KA | 185796 FRC-1/4-D-MIDI-KA-A | |||
| G3/8 | 185797 FRC-3/8-D-MIDI-KA | 185798 FRC-3/8-D-MIDI-KA-A | ||||
| G½ | 185799 FRC-1/2-D-MIDI-KA | 185800 FRC-1/2-D-MIDI-KA-A | ||||
| Maxi | G½ | 186053 FRC-1/2-D-MAXI-KA | 186054 FRC-1/2-D-MAXI-KA-A | |||
| G¾ | 185801 FRC-3/4-D-MAXI-KA | 185802 FRC-3/4-D-MAXI-KA-A | ||||
| Directly actuated pressure regulator with integrated return flow function | ||||||
| Maxi | G½ | 192468 FRC-1/2-D-DI-MAXI-KA | 192478 FRC-1/2-D-DI-MAXI-KA-A | |||
| G¾ | 192473 FRC-3/4-D-DI-MAXI-KA | 192483 FRC-3/4-D-DI-MAXI-KA-A | ||||
