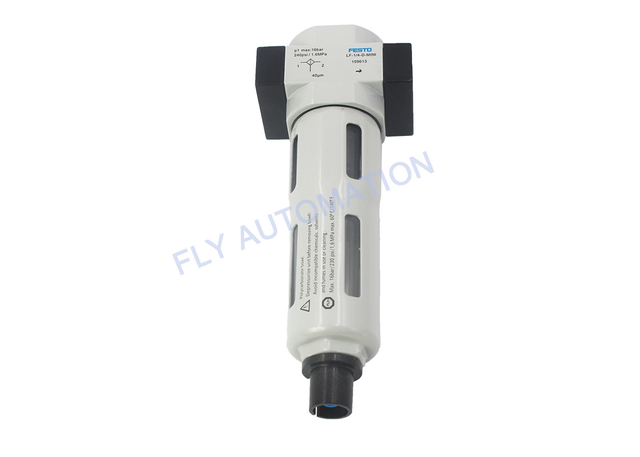

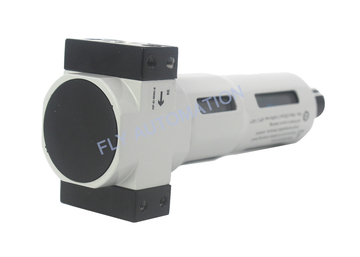

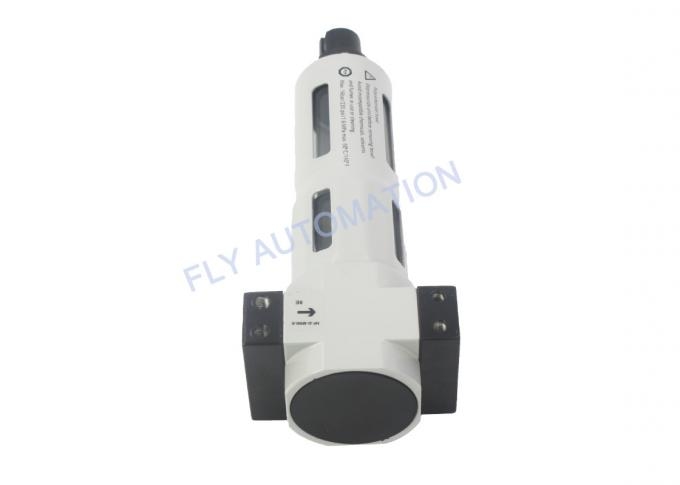

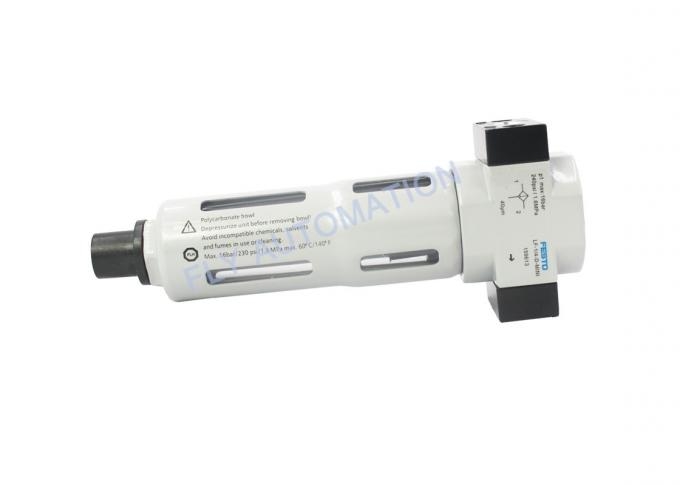

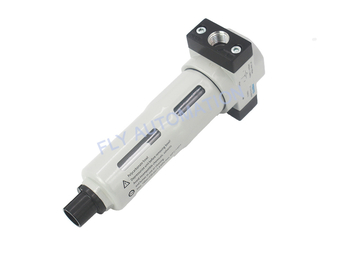

![FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units](/photo/p1343752-640x640-festo-lf-1-4-d-mini-auto-drain-valve-1-4-air-filter-regulator-lf-type-air-source-treatment-units.jpg "FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units")
![FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units](/photo/p1343752-360x360-festo-lf-1-4-d-mini-auto-drain-valve-1-4-air-filter-regulator-lf-type-air-source-treatment-units.jpg "FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units")
![FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units](/photo/p1343753-360x360-festo-lf-1-4-d-mini-auto-drain-valve-1-4-air-filter-regulator-lf-type-air-source-treatment-units.jpg "FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units")
![FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units](/photo/p1343754-360x360-festo-lf-1-4-d-mini-auto-drain-valve-1-4-air-filter-regulator-lf-type-air-source-treatment-units.jpg "FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units")
![FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units](/photo/p1343755-360x360-festo-lf-1-4-d-mini-auto-drain-valve-1-4-air-filter-regulator-lf-type-air-source-treatment-units.jpg "FESTO LF-1/4-D-MINI Auto Drain Valve 1/4" Air Filter Regulator LF Type Air Source Treatment Units")
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
$ 11.3
$
17.5
$ 7
$
10
$ 26
$
35
$ 12.5
$
18
$ 46.3
$
59
$ 19
$
28
$ 13.2
$
19
$ 20.5
$
28
$ 58
$
68
$ 9.5
$
18
$ 16.8
$
20
$ 17
$
24
$ 34.5
$
50
$ 10
$
18
$ 299.5
$
380
$ 13.6
$
18
| Feature | Value |
| Size | Mini |
| Series | D |
| Mounting position | Vertical +/-5° |
| Grade of filtration | 40 µm |
| Condensate drain | Manually rotating |
| Design | Sintered filter with centrifugal separator |
| Max. condensate volume | 22 ml |
| Bowl guard | Metal bowl guard |
| Symbol | 00991519 |
| Operating pressure | 0 bar ... 16 bar |
| Standard nominal flow rate | 1200 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Storage temperature | -10 °C ... 60 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases |
| Media temperature | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 250 g |
| Type of mounting | In-line installation With accessories |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS-compliant |
| Material filter | PE |
| Material housing | Die-cast zinc |
| Material bowl | PC |
