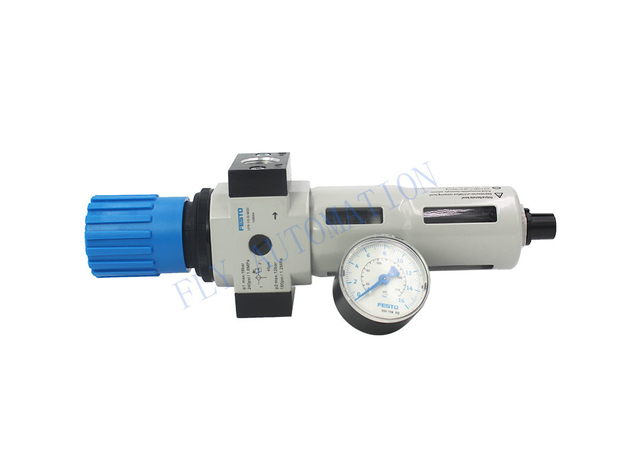

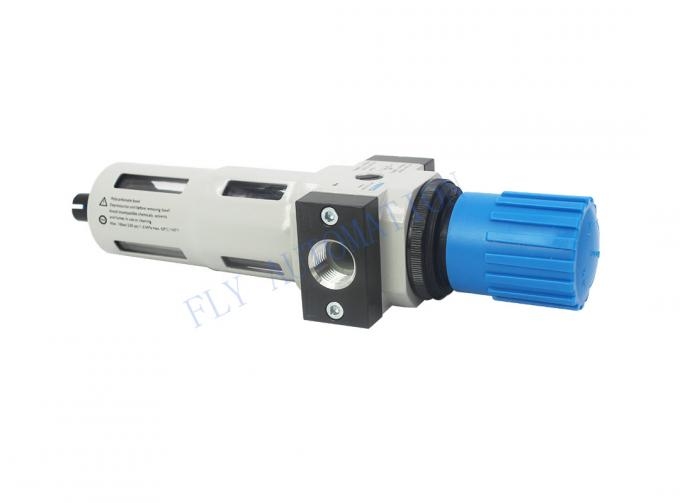

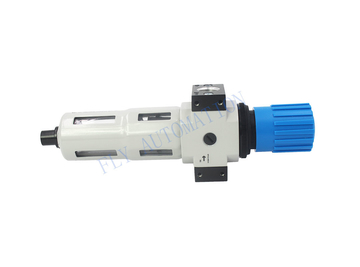

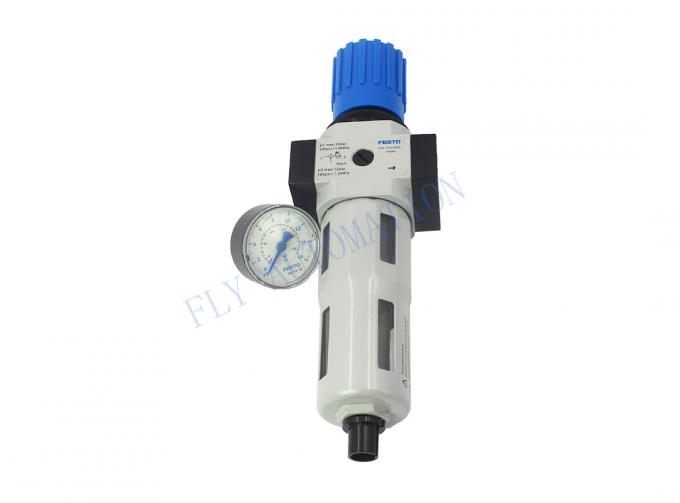

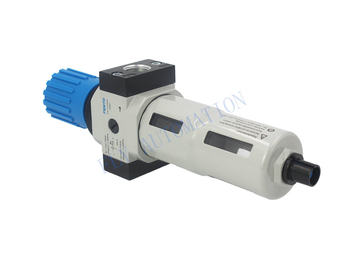

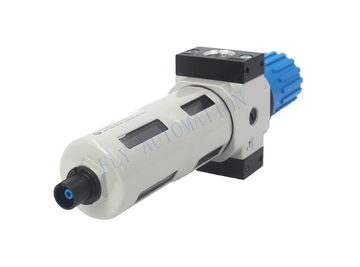

FESTO Filter Regulator 159584 Air Source Treatment Units LFR-1/2-D-MIDI
FESTO Filter Regulator 159584 Air Source Treatment Units LFR-1/2-D-MIDI
27%
OFF

FESTO Filter Regulator 159584 Air Source Treatment Units LFR-1/2-D-MIDI

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.155834

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   20.5
$ 28 save $ 7.5
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 20.5 $ 28 save $ 7.5
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

    • FESTO Filter Regulator LFR-1/2-D-MIDI 159584 Air Source Treatment Units

    Feature Value
    Size Midi
    Series D
    Actuator lock Rotary knob with detent
    Mounting position Vertical +/-5°
    Grade of filtration 40 µm
    Condensate drain Manually rotating
    Design Filter regulator with pressure gauge
    Max. condensate volume 43 ml
    Bowl guard Metal bowl guard
    Symbol 991585
    Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
    Operating pressure 1 bar ... 16 bar
    Pressure regulation range 0.5 bar ... 12 bar
    Max. pressure hysteresis 0.2 bar
    Standard nominal flow rate 3400 l/min
    Operating medium Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
    Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
    Corrosion resistance class CRC 2 - Moderate corrosion stress
    Storage temperature -10 °C ... 60 °C
    Air purity class at output Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases
    Media temperature -10 °C ... 60 °C
    Ambient temperature -10 °C ... 60 °C
    Product weight 920 g
    Type of mounting Either:
    In-line installation
    With accessories
    Pneumatic connection, port 1 G1/2
    Pneumatic connection, port 2 G1/2
    Note on materials RoHS-compliant
    Material housing Die-cast zinc
    Material bowl PC

    Ordering data
    Pressure regulation range 0.5 ... 12 bar, rotary knob with latch, connecting plates with threaded connection
    Condensate drain Size Connection Grade of filtration 5 μm Grade of filtration 40 μm
    Part no. Type Part no. Type
    With pressure gauge, outer scale in bar, inner scale in psi
    Manual Mini G1/8 162718 LFR-1/8-D-5M-MINI 159630 LFR-1/8-D-MINI
    G1/4 162719 LFR-1/4-D-5M-MINI 159631 LFR-1/4-D-MINI
    G3/8 162720 LFR-3/8-D-5M-MINI 162682 LFR-3/8-D-MINI
    Midi G1/4 186483 LFR-1/4-D-5M-MINI 186481 LFR-1/4-D-MIDI
    G3/8 162721 LFR-3/8-D-5M-MINI 159582 LFR-3/8-D-MIDI
    G1/2 162722 LFR-1/2-D-5M-MINI 159584 LFR-1/2-D-MIDI
    G3/4 162723 LFR-3/4-D-5M-MINI 162683 LFR-3/4-D-MIDI
    Maxi G1/2 186491 LFR-1/2-D-5M-MAXI 186489 LFR-1/2-D-MAXI
    G3/4 162724 LFR-3/4-D-5M-MAXI 159632 LFR-3/4-D-MAXI
    G1 162725 LFR-1-D-5M-MAXI 159633 LFR-1-D-MAXI
    Fully automatic Mini G1/8 162726 LFR-1/8-D-5M-MINI-A 159634 LFR-1/8-D-MINI-A
    G1/4 162727 LFR-1/4-D-5M-MINI-A 159635 LFR-1/4-D-MINI-A
    G3/8 162728 LFR-3/8-D-5M-MINI-A 162684 LFR-3/8-D-MINI-A
    Midi G1/4 186486 LFR-1/4-D-5M-MIDI-A 186484 LFR-1/4-D-MIDI-A
    G3/8 162729 LFR-3/8-D-5M-MIDI-A 159583 LFR-3/8-D-MIDI-A
    G1/2 162730 LFR-1/2-D-5M-MIDI-A 159585 LFR-1/2-D-MIDI-A
    G3/4 162731 LFR-3/4-D-5M-MIDI-A 162685 LFR-3/4-D-MIDI-A
    Maxi G1/2 186494 LFR-1/2-D-5M-MAXI-A 186492 LFR-1/2-D-MAXI-A
    G3/4 162732 LFR-3/4-D-5M-MAXI-A 159636 LFR-3/4-D-MAXI-A
    G1 162733 LFR-1-D-5M-MAXI-A 159637 LFR-1-D-MAXI-A
    Without pressure gauge
    Manual Mini G1/8 192610 LFR-1/8-D-5M-O-MINI1) 162686 LFR-1/8-D-O-MINI1)
    G1/4 192611 LFR-1/4-D-5M-O-MINI1) 162687 LFR-1/4-D-O-MINI1)
    G3/8 192612 LFR-3/8-D-5M-O-MINI1) 162688 LFR-3/8-D-O-MINI1)
    Midi G1/4 192613 LFR-1/4-D-5M-O-MIDI1) 186482 LFR-1/4-D-O-MIDI1)
    G3/8 192614 LFR-3/8-D-5M-O-MIDI1) 162689 LFR-3/8-D-O-MIDI1)
    G1/2 192615 LFR-1/2-D-5M-O-MIDI1) 162690 LFR-1/2-D-O-MIDI1)
    G3/4 192616 LFR-3/4-D-5M-O-MIDI1) 162691 LFR-3/4-D-O-MIDI1)
    Maxi G1/2 192617 LFR-1/2-D-5M-O-MAXI1) 186490 LFR-1/2-D-O-MAXI1)
    G3/4 192618 LFR-3/4-D-5M-O-MAXI1) 162692 LFR-3/4-D-O-MAXI1)
    G1 192619 LFR-1-D-5M-O-MAXI1) 162693 LFR-1-D-O-MAXI1)
    Fully automatic Mini G1/8 192620 LFR-1/8-D-5M-O-MINI-A1) 162694 LFR-1/8-D-O-MINI-A1)
    G1/4 192621 LFR-1/4-D-5M-O-MINI-A1) 162695 LFR-1/4-D-O-MINI-A1)
    G3/8 192622 LFR-3/8-D-5M-O-MINI-A1) 162696 LFR-3/8-D-O-MINI-A1)
    Midi G1/4 192623 LFR-1/4-D-5M-O-MIDI-A1) 186485 LFR-1/4-D-O-MIDI-A1)
    G3/8 192624 LFR-3/8-D-5M-O-MIDI-A1) 162697 LFR-3/8-D-O-MIDI-A1)
    G1/2 192625 LFR-1/2-D-5M-O-MIDI-A1) 162698 LFR-1/2-D-O-MIDI-A1)
    G3/4 192626 LFR-3/4-D-5M-O-MIDI-A1) 162699 LFR-3/4-D-O-MIDI-A1)
    Maxi G1/2 192627 LFR-1/2-D-5M-O-MAXI-A1) 186493 LFR-1/2-D-O-MAXI-A1)
    G3/4 192628 LFR-3/4-D-5M-O-MAXI-A1) 162700 LFR-3/4-D-O-MAXI-A1)
    G1 192629 LFR-1-D-5M-O-MAXI-A1) 162701 LFR-1-D-O-MAXI-A1)

    Condensate drain Size Connection Grade of filtration 5 μm
    Part no. Type
    With pressure gauge, outer scale in bar
    Manual Micro Without connecting plates, connection thread in the housing
    M5 526273 LFR-M5-D-7-5M-MICRO
    M7 534184 LFR-M7-D-7-5M-MICRO-B
    Connecting plates with threaded connection
    G1/8 526277 LFR-1/8-D-7-5M-MICRO
    Connecting plates with push-in connector
    QS-4 526289 LFR-QS4-D-7-5M-MICRO
    QS-6 526293 LFR-QS6-D-7-5M-MICRO
    Semi-automatic Micro Without connecting plates, connection thread in the housing
    M5 526274 LFR-M5-D-7-5M-MICRO-H
    M7 534185 LFR-M7-D-7-5M-MICRO-H-B
    Connecting plates with threaded connection
    G1/8 526278 LFR-1/8-D-7-5M-MICRO-H
    Connecting plates with push-in connector
    QS-4 526290 LFR-QS4-D-7-5M-MICRO-H
    QS-6 526294 LFR-QS6-D-7-5M-MICRO-H
    Without pressure gauge
    Manual Micro Without connecting plates, connection thread in the housing
    M5 526275 LFR-M5-D-7-O-5M-MICRO
    M7 534186 LFR-M7-D-7-O-5M-MICRO-B
    Connecting plates with threaded connection
    G1/8 526279 LFR-1/8-D-7-O-5M-MICRO
    Connecting plates with push-in connector
    QS-4 526291 LFR-QS4-D-7-O-5M-MICRO
    QS-6 526295 LFR-QS6-D-7-O-5M-MICRO
    Semi-automatic Micro Without connecting plates, connection thread in the housing
    M5 526276 LFR-M5-D-7-O-5M-MICRO-H
    M7 534187 LFR-M7-D-7-O-5M-MICRO-H-B
    Connecting plates with threaded connection
    G1/8 526280 LFR-1/8-D-7-O-5M-MICRO-H
    Connecting plates with push-in connector
    QS-4 526292 LFR-QS4-D-7-O-5M-MICRO-H
    QS-6 526296 LFR-QS6-D-7-O-5M-MICRO-H

  • Specification
    • Size Midi
    • Series D
    • Actuator lock Rotary knob with detent
    • Mounting position Vertical +/-5°
    • Grade of filtration 40 µm
    • Product weight 920 g
    • Weight 1.02 kg
    • Package 23.00cm*13.00cm*6.00cm
